How do you handle thousands of requests per second without overwhelming a server or causing a database timeout? A decoupled architecture separates the request path from the database-processing path so each part can scale independently.

This lab combines ALB (Application Load Balancer), Lambda, SQS (Simple Queue Service), and DynamoDB to build a scalable and reliable workflow. When traffic spikes, SQS absorbs the work before it reaches the database.

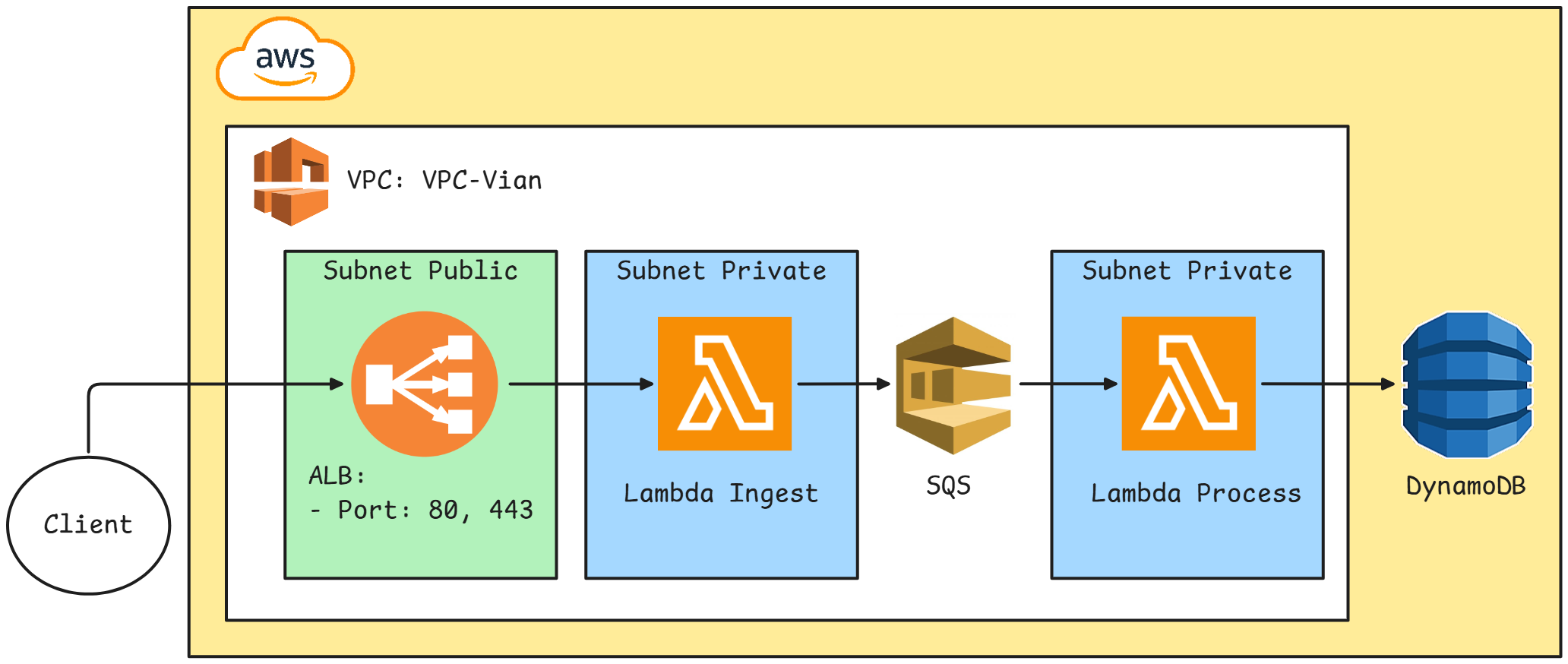

Let's break down the architecture.

The idea is simple: users should not have to wait for a database write to finish before receiving a response. Instead, the request is handled asynchronously.

The data flow is:

1. The user sends an HTTP request, such as an order request, to the ALB.
2. The ALB forwards the request to Lambda Ingest.
3. Lambda Ingest does not write directly to the database. It places the message in SQS and immediately returns an acknowledgment to the user.
4. SQS stores the messages in a queue.
5. Lambda Process, triggered by SQS, consumes the messages and writes the data to DynamoDB.

The frontend remains responsive while the backend processes the queued work in an orderly way.

• An existing VPC with:
  • Four subnets: two public and two private
  • An internet gateway
  • A route table for the public subnets and a route table for each private subnet
• A security group with inbound rules for:
  • HTTP: 80
  • HTTPS: 443

DynamoDB is used as the final data store because it is serverless and scales without managing database servers.

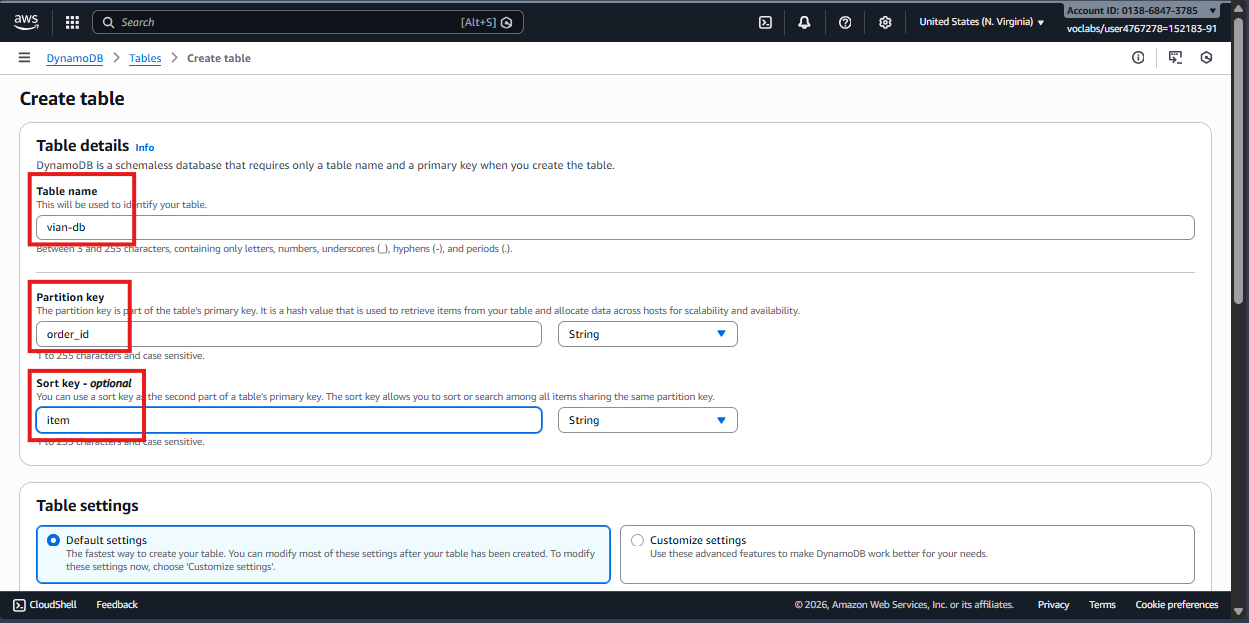

• Open the DynamoDB console and select Create table.
• Enter the table name and partition key. This example uses:
  • Partition key: order_id
  • Sort key: item

SQS buffers incoming work so traffic spikes do not immediately overload the database.

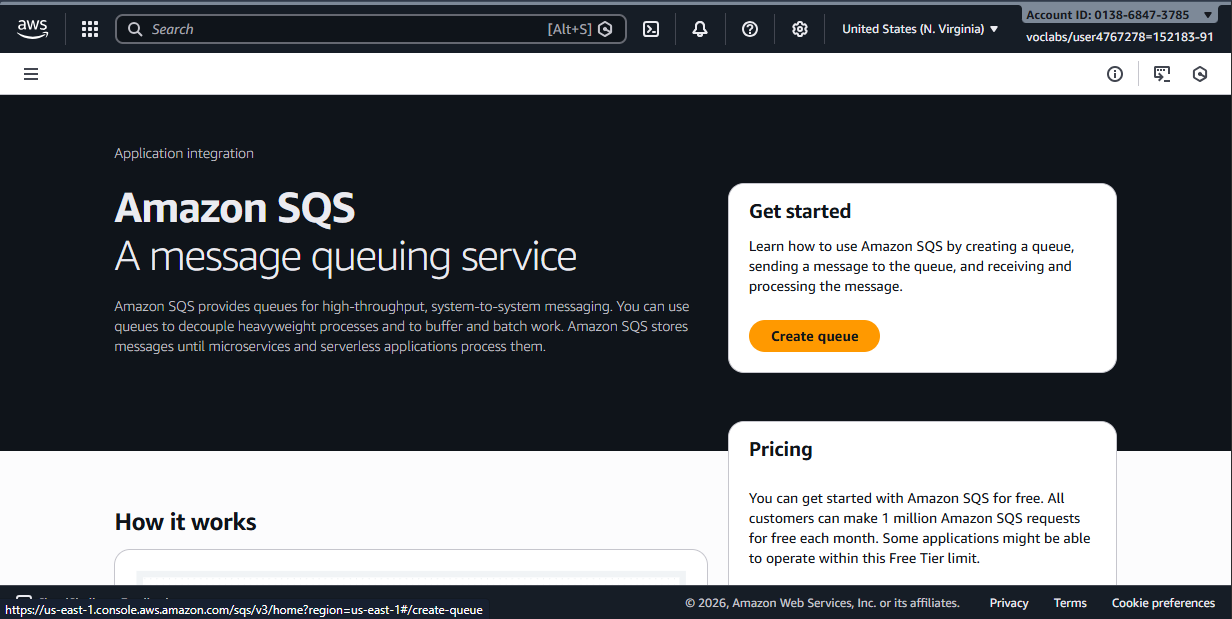

• Open SQS and select Create queue.

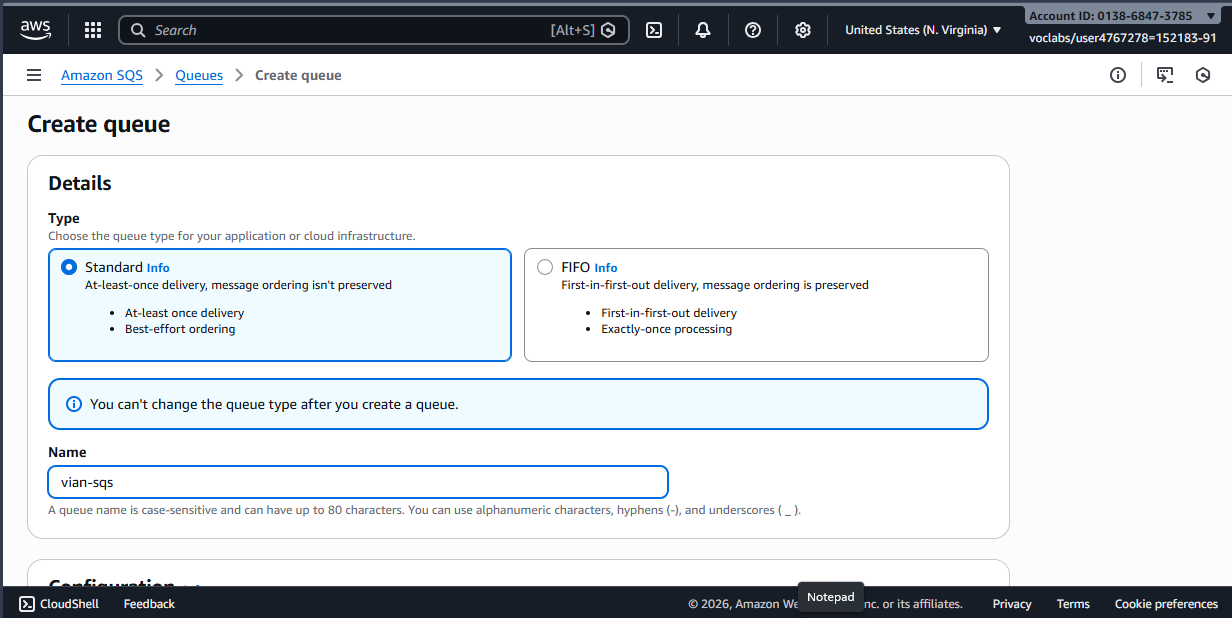

• Choose the Standard queue type for higher throughput. Enter a name such as vian-sqs, then select Create.

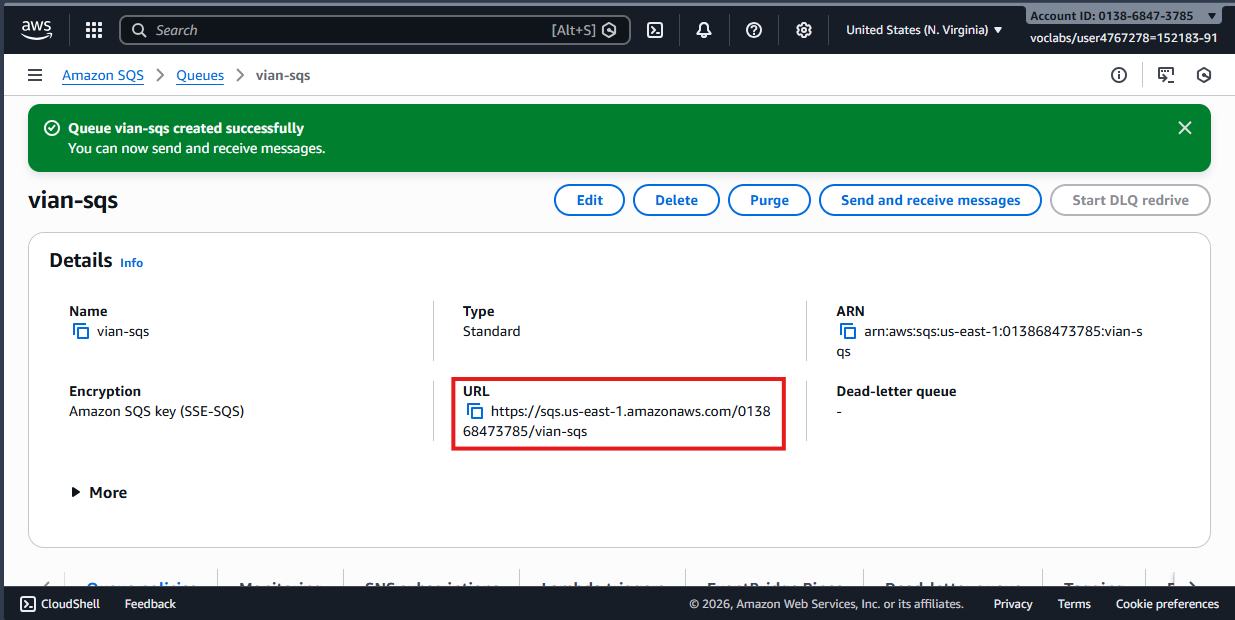

• Copy the SQS URL; Lambda Ingest will use it when sending messages.

IngestFunction receives data from the ALB and places it in SQS.

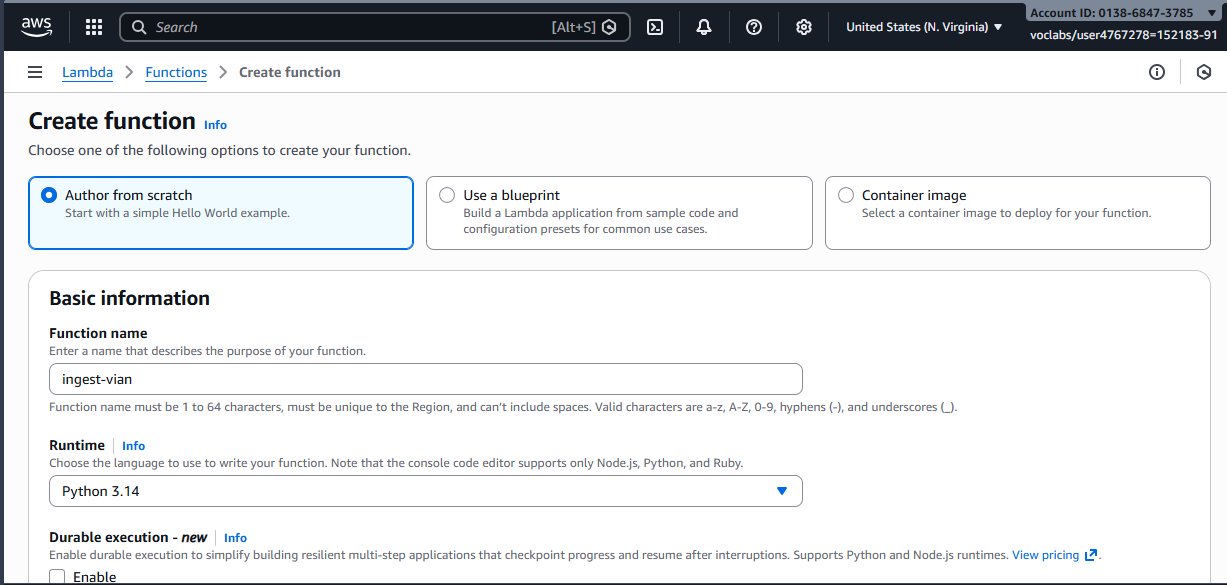

• Create a new function, for example Ingest-vian.
• Select the Python runtime.

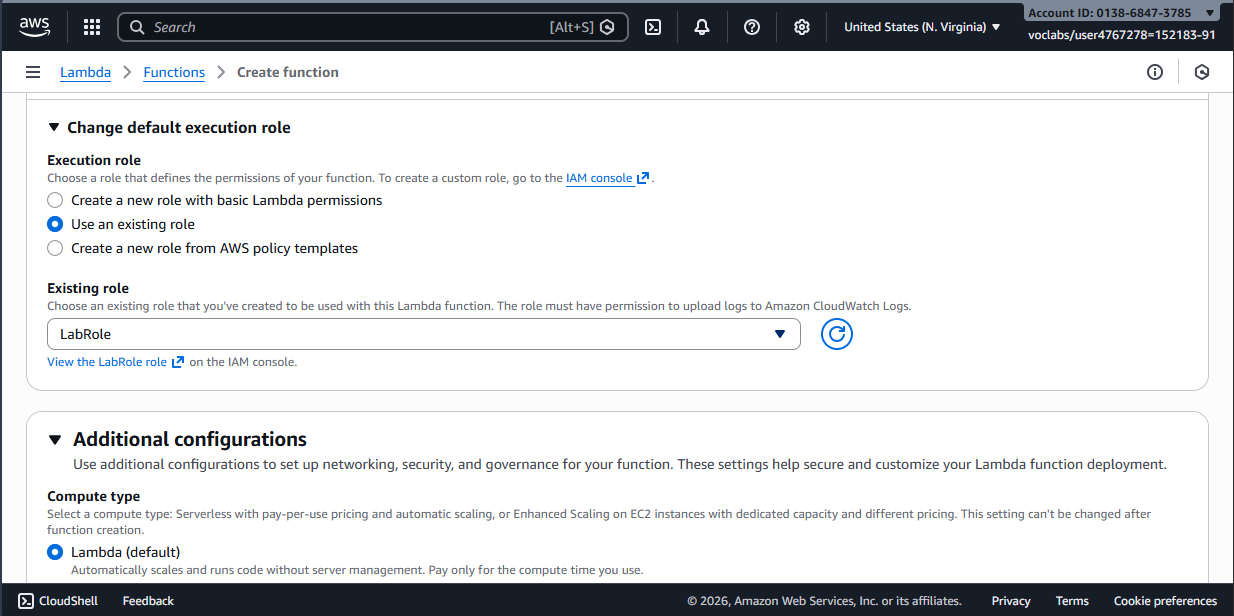

• Ensure the IAM role has sqs:SendMessage permission for the SQS queue. In this example, the AWS Academy LabRole is used.

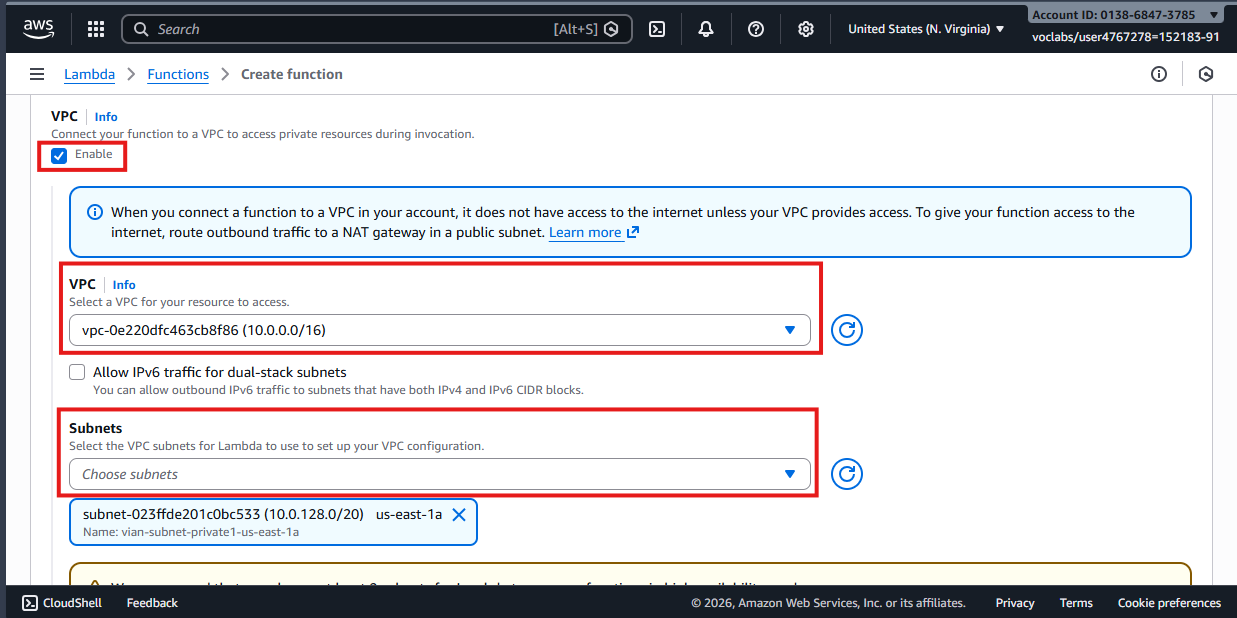

• Enable the VPC configuration for Lambda Ingest and select the private subnets that match the topology.

• Select the security group with inbound ports 80 and 443.

• Use the following handler. It reads an ALB event and sends the request body to SQS.

import json
import boto3
import os

# Initialize the client outside the handler for faster reuse.
sqs = boto3.client('sqs')
QUEUE_URL = "{PASTE-URL-SQS}"

def lambda_handler(event, context):
    print("ALB EVENT:", json.dumps(event))

    path = event.get('path', '/')
    method = event.get('httpMethod', 'UNKNOWN')

    # Match the path configured in the trigger, for example: /lambda/api
    if path == "/lambda/api" and method == "POST":
        try:
            body_raw = event.get('body', '{}')

            sqs.send_message(
                QueueUrl=QUEUE_URL,
                MessageBody=body_raw
            )

            return {
                "statusCode": 200,
                "headers": {"Content-Type": "application/json"},
                "body": json.dumps({"status": "Success", "msg": "Data queued in SQS"})
            }
        except Exception as e:
            print(f"CRITICAL ERROR SQS: {str(e)}")
            return {
                "statusCode": 500,
                "body": json.dumps({"error": f"Failed to send to SQS: {str(e)}"})
            }

    else:
        return {
            "statusCode": 404,
            "body": json.dumps({"error": f"Invalid path: {path}"})
        }

The ALB needs a target group so it can invoke IngestFunction.

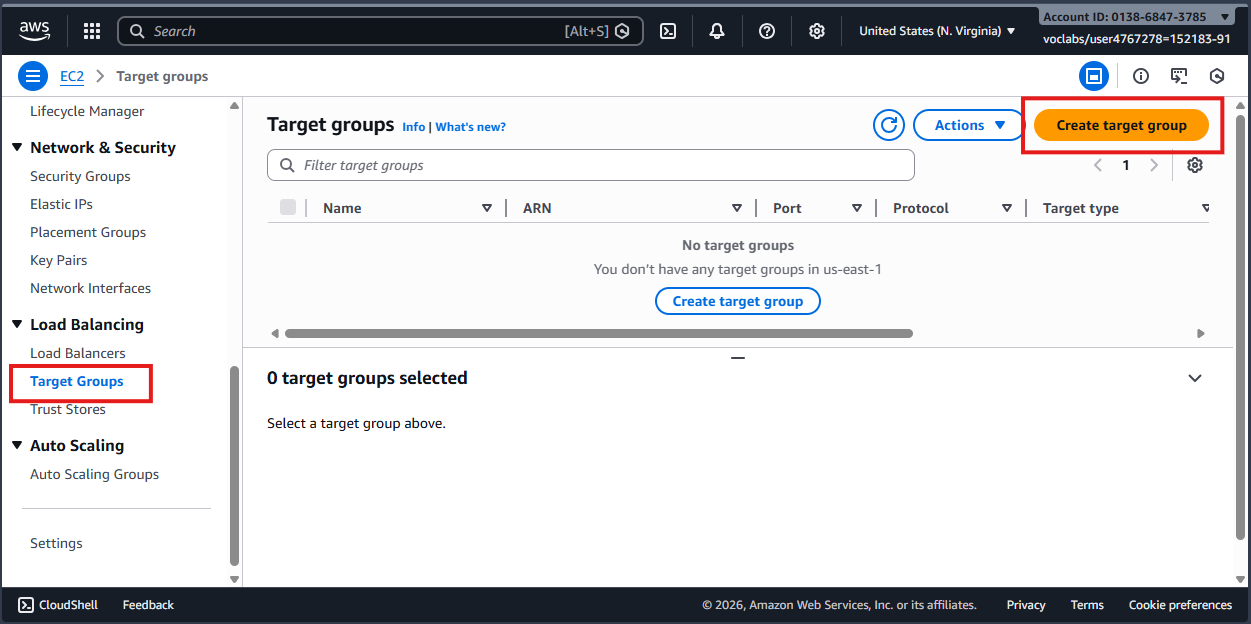

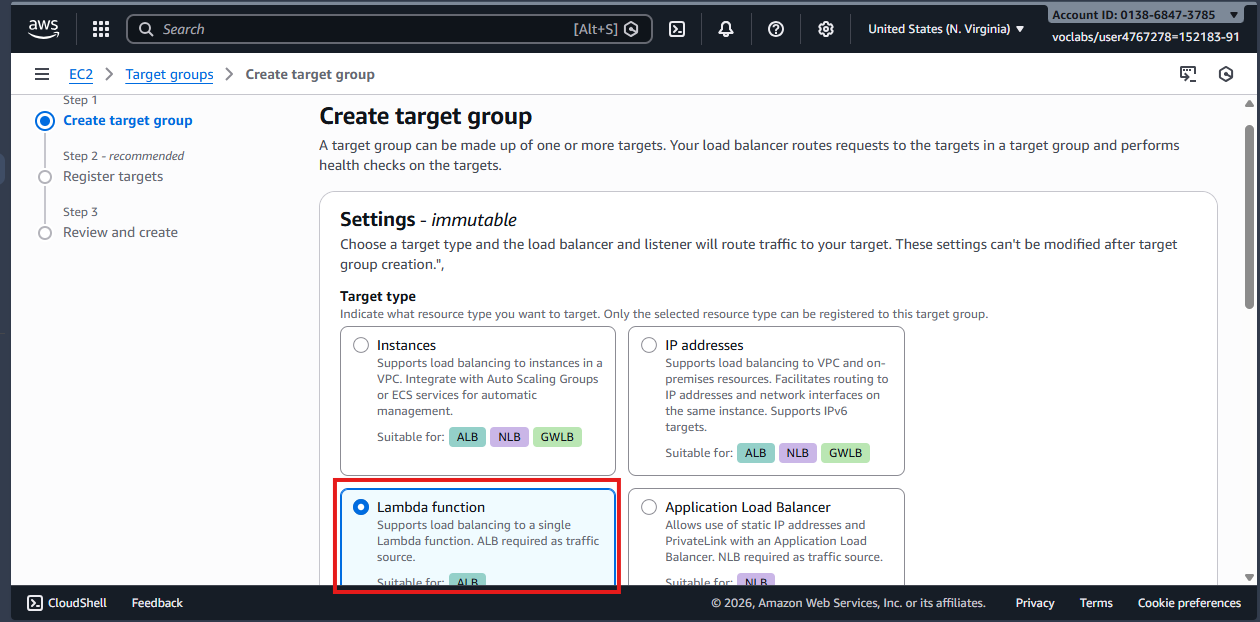

• Create a target group, choose Lambda function as the target type, and select the function you created.

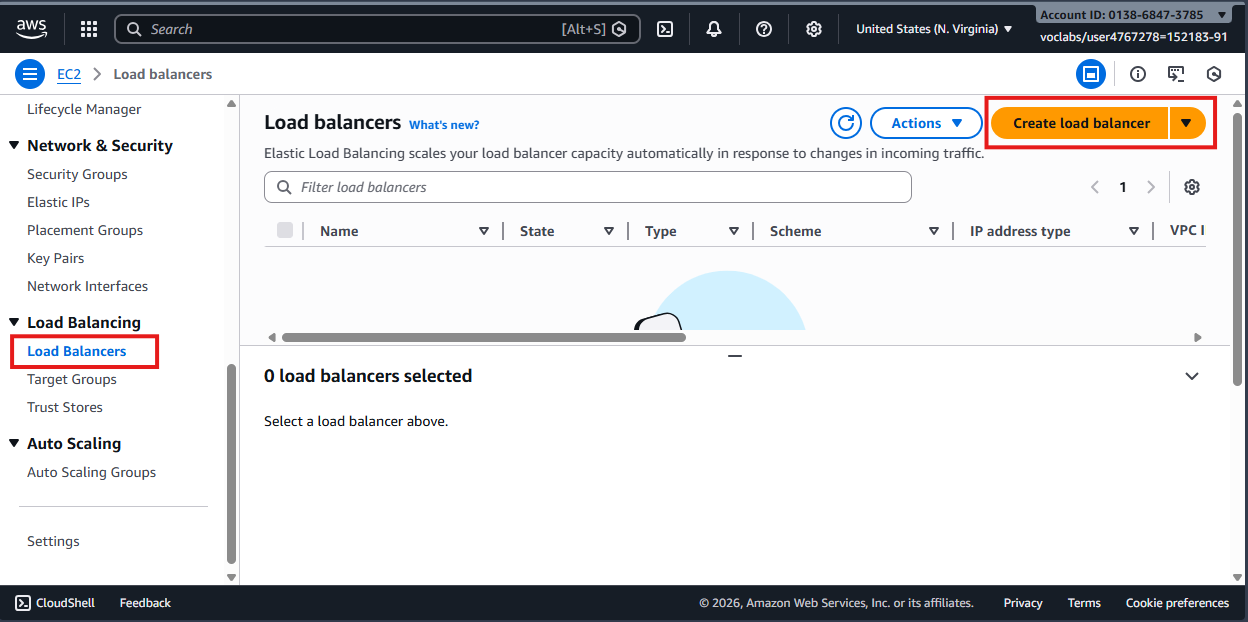

• Create an Application Load Balancer.

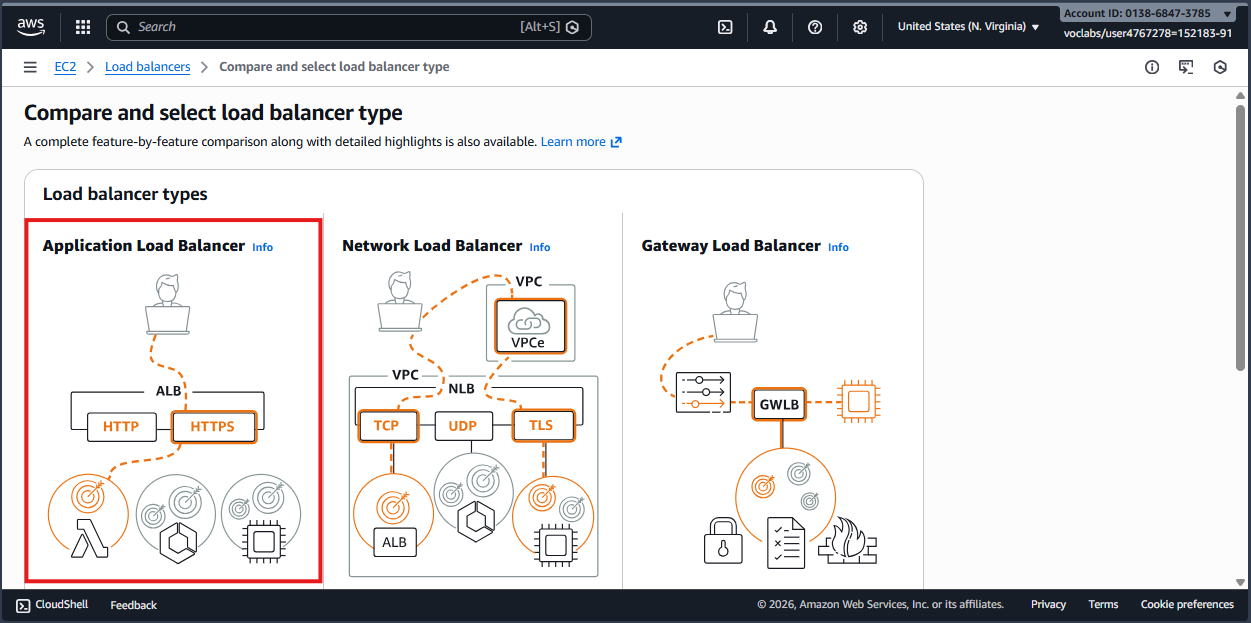

• Select Application Load Balancer (ALB).

• Enter a name, use the Internal-facing scheme, and select IPv4.

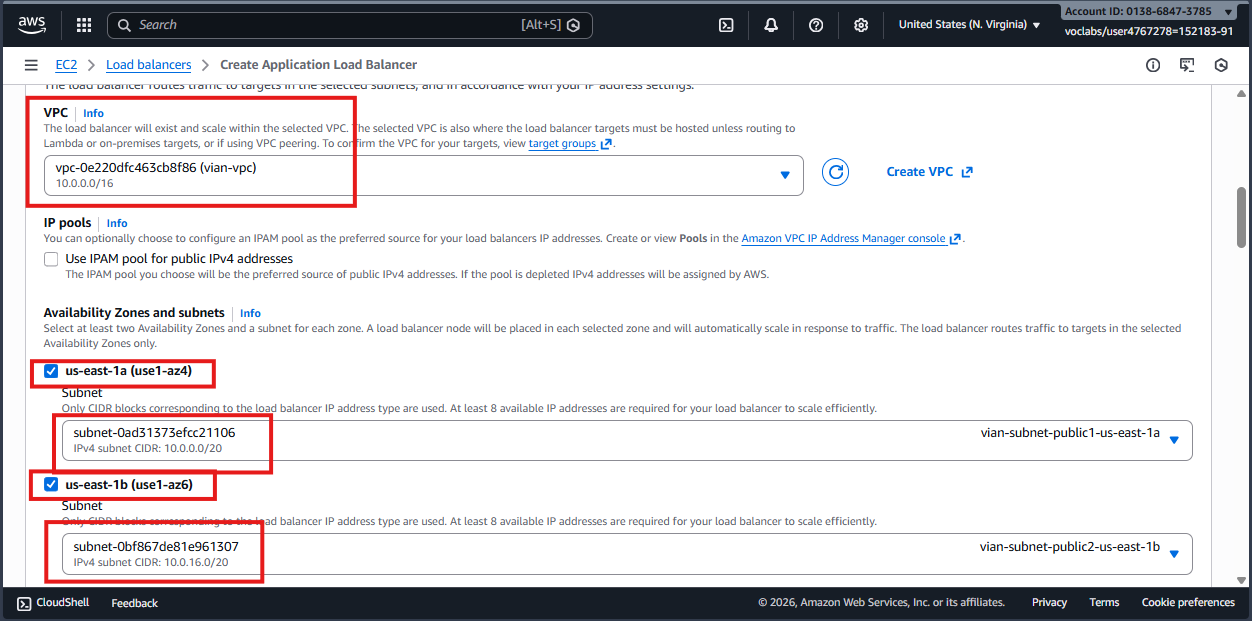

• Configure the VPC, availability zones, and subnets:
  • Use the VPC created earlier.
  • Select one or two availability zones.
  • Place the ALB in the public subnets so clients can reach it.

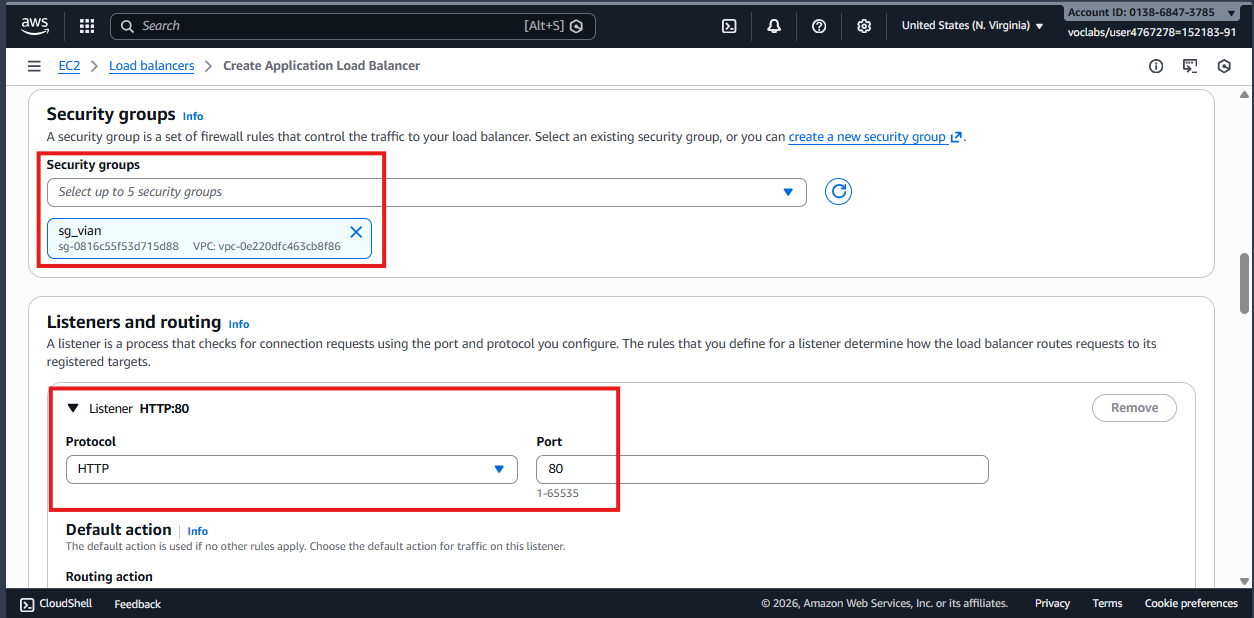

• Configure the security group and listener:
  • Use the security group with inbound ports 80 and 443.
  • Configure an HTTP listener on port 80.

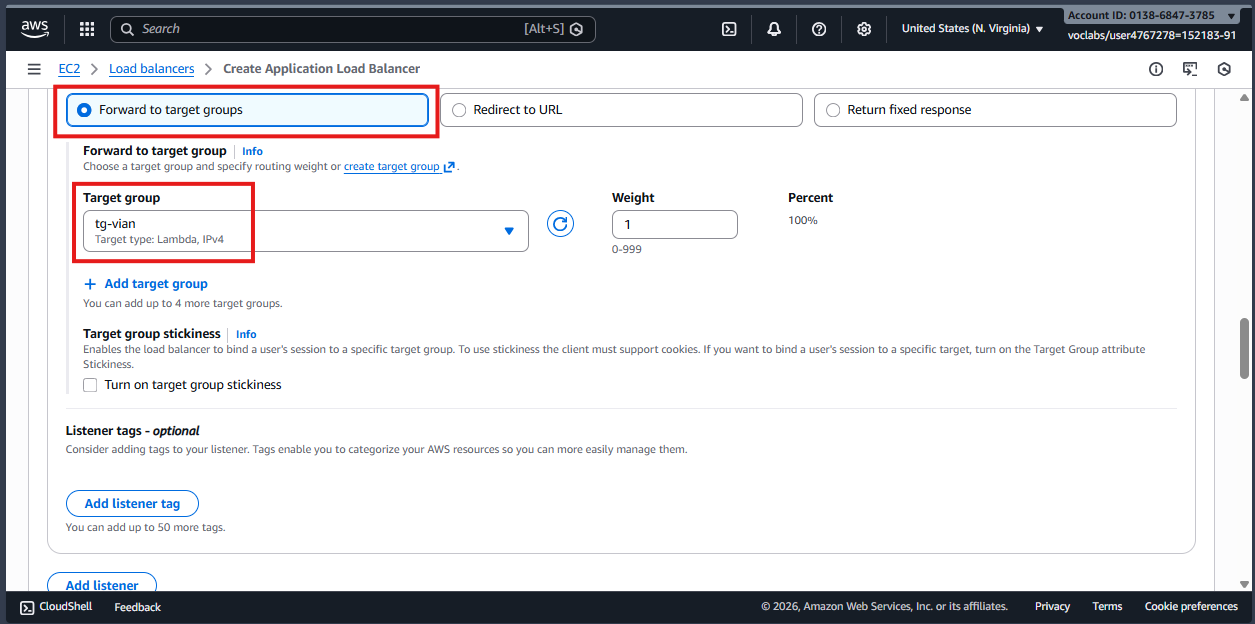

• Select the target group created earlier, then select Create.

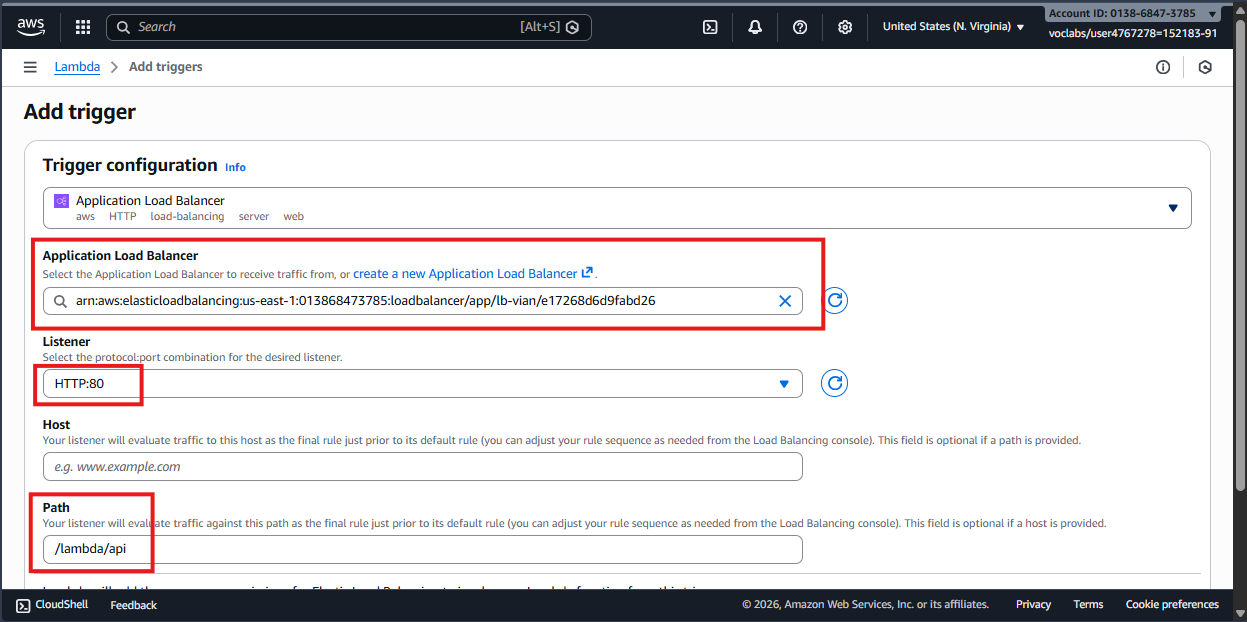

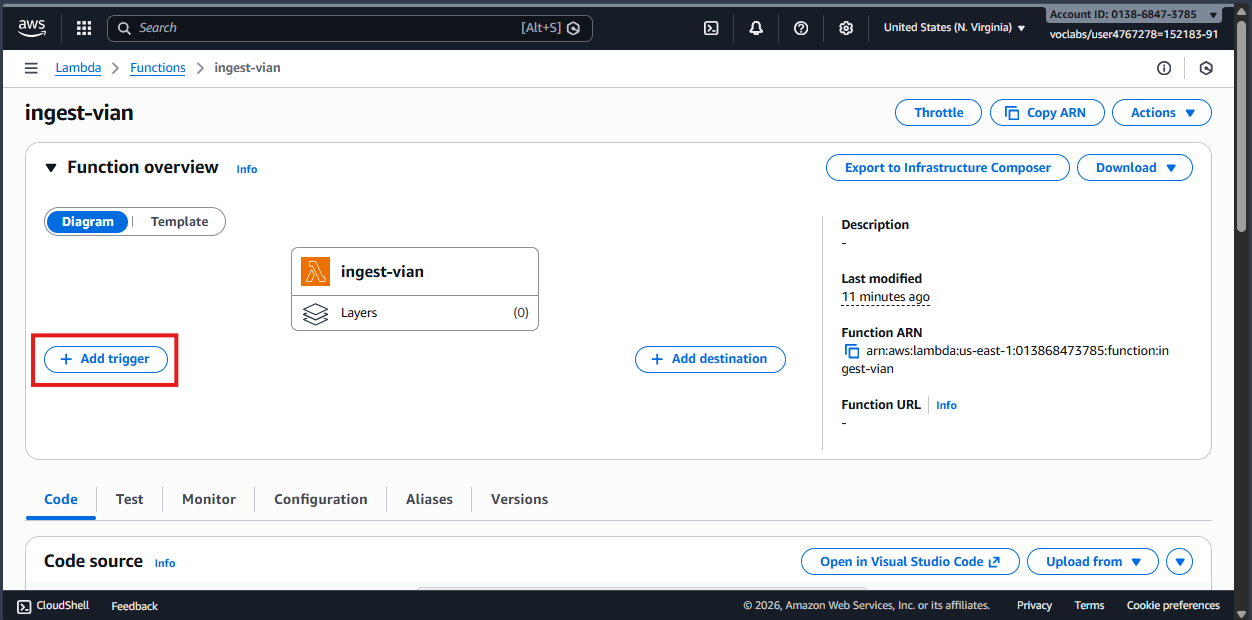

• Add a Trigger to IngestFunction so it can be invoked by the ALB.

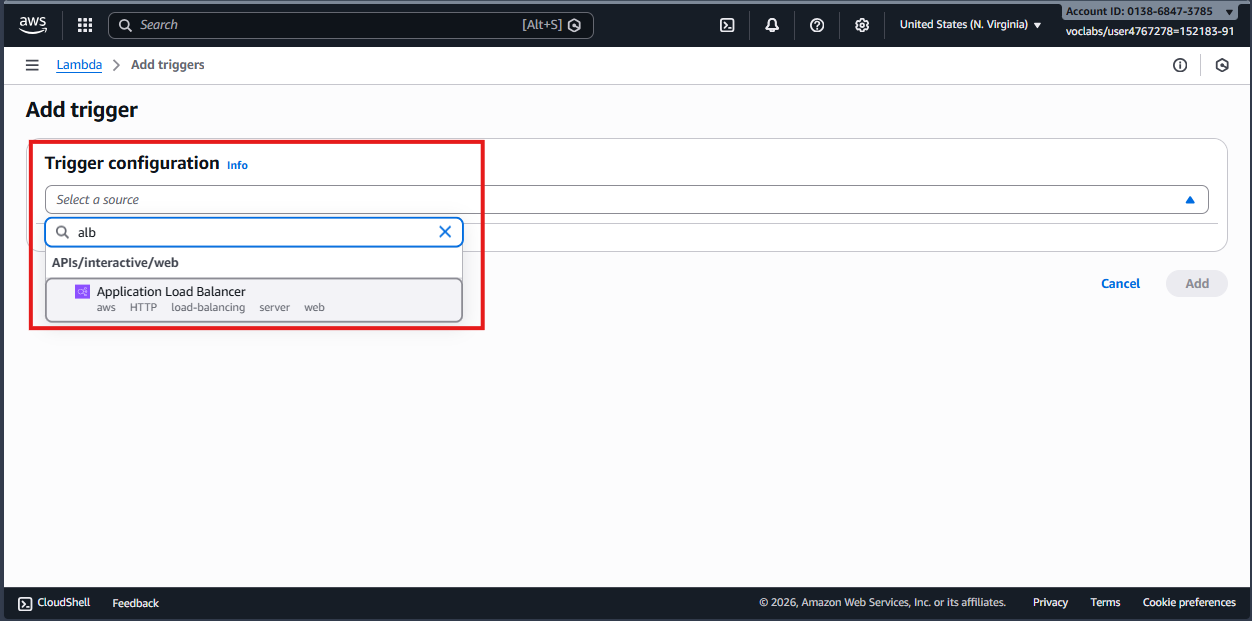

• Search for and select ALB.

• Select the ALB that you created.
• Use the HTTP:80 listener.
• Set the path to /lambda/api/. The path is configurable, but it must match the path checked in the Lambda handler.

ProcessFunction is the second function. It consumes messages from SQS and stores them in DynamoDB.

• Create a new function, for example ProcessFunction, using the same general configuration as IngestFunction.
• Select the Python runtime.
• Use an IAM role with sqs:ReceiveMessage, sqs:DeleteMessage, and dynamodb:PutItem permissions. In this example, the LabRole is used.
• Use the following handler. It is triggered by SQS, parses each message, and stores the result in DynamoDB.

import json
import boto3
import os

dynamodb = boto3.resource('dynamodb')
TABLE_NAME = os.environ.get('TABLE_NAME')
table = dynamodb.Table(TABLE_NAME)

def lambda_handler(event, context):
    # SQS sends messages in a list called 'Records'.
    for record in event['Records']:
        try:
            # 1. Parse the SQS message body.
            payload = json.loads(record['body'])

            # 2. Store the payload in DynamoDB.
            # Ensure the payload contains the table's partition key.
            table.put_item(Item=payload)

            print(f"Processed message ID: {record['messageId']}")

        except Exception as e:
            print(f"Failed to process record {record['messageId']}: {str(e)}")
            # Raising an error tells SQS to retry the message.
            raise e

    return {
        'statusCode': 200,
        'body': json.dumps('SQS to DynamoDB processing complete')
    }

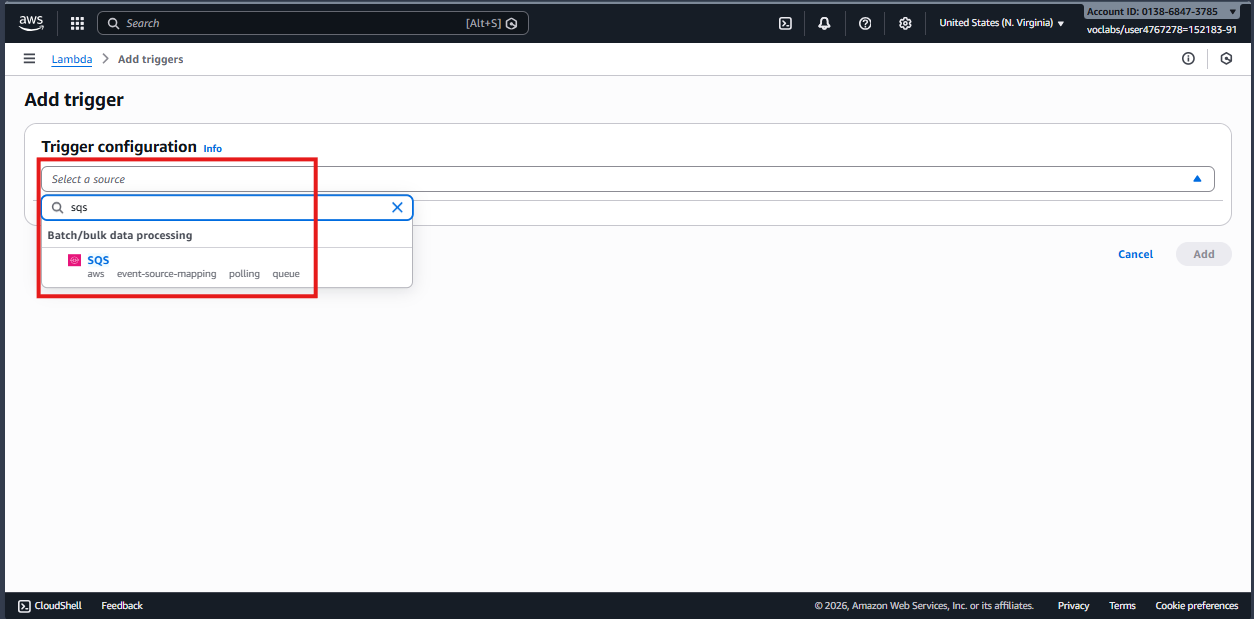

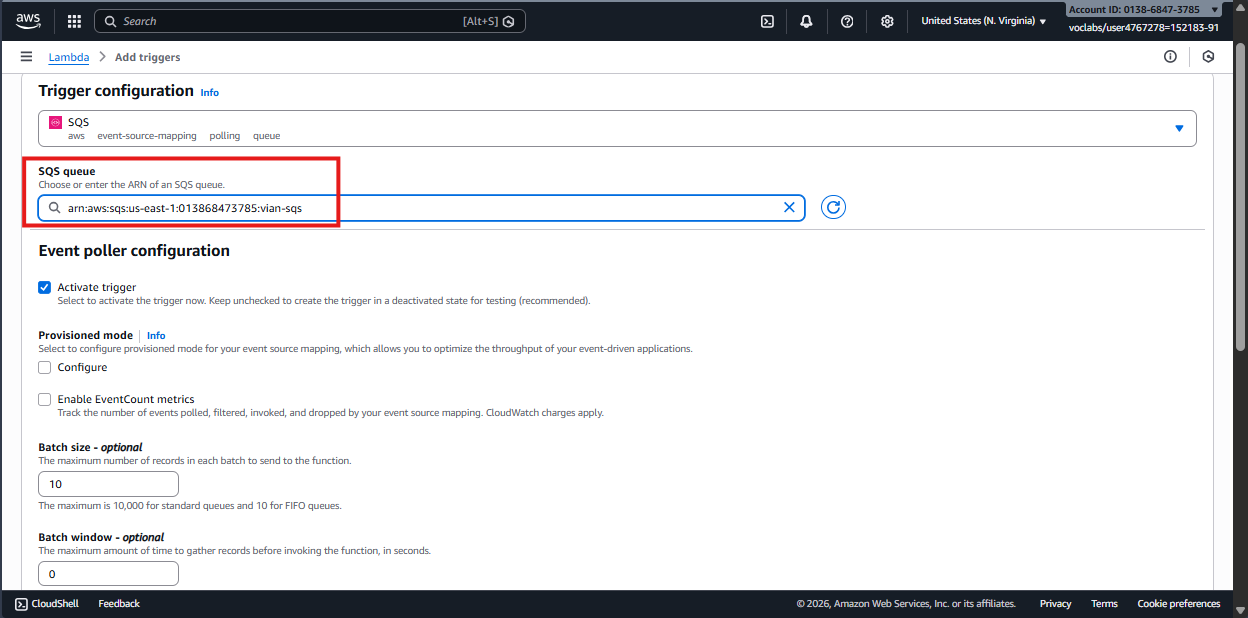

• Set the SQS trigger: Connect the function to the SQS queue. Every new message will invoke Lambda automatically.

Use this table as a quick reference:

Now verify the end-to-end flow.

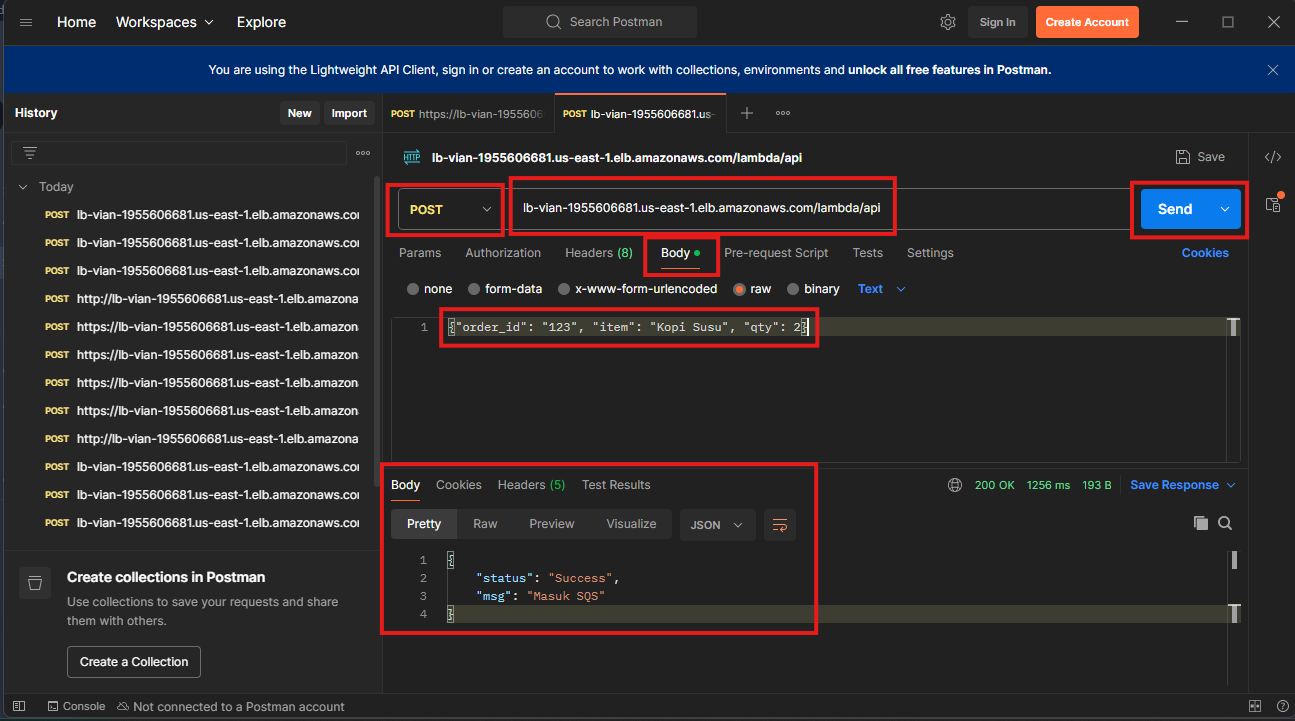

1. Call the API with Postman

   Send a POST request to the ALB DNS name at /lambda/api with a JSON body.

   • Paste the ALB URL and append /lambda/api.
   • Set the method to POST.
   • Open the request body, enter the payload, and select Send.
   json

   {"order_id": "123", "item":"Milk Coffee", "qty": 2}

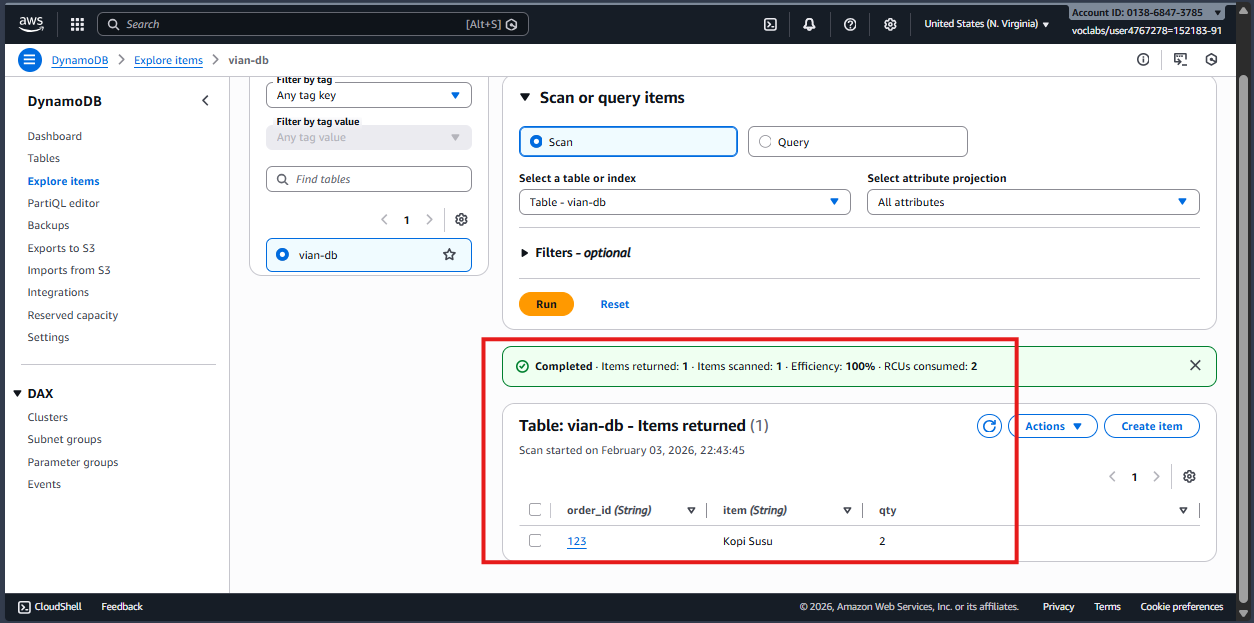

2. Check DynamoDB

   The record should now appear in the DynamoDB table.

This pattern keeps the API responsive and makes the application more resilient during traffic spikes. The frontend receives a fast response while SQS and Lambda process the database write asynchronously.

See you in the next article - keep learning and keep building.
